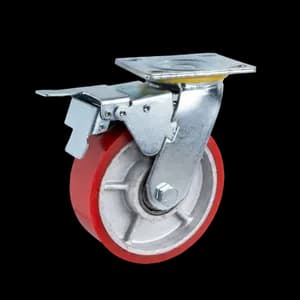

MFTP B 125 50 PUCB — Polyurethane (Cast Iron Core) Wheel with MS Fabricated Castor
- Wheel Material:Polyurethane on Cast Iron Core
- Mount Type:Plate mount
- Wheel Diameter:125.0 mm
- Wheel Width:50.0 mm
- Total Height:165.0 mm
- Top Plate Size:116x100mm
- Hole Pitch:83x71mm
- Hole Size:20x12.5mm
- Load Capacity:300Kgs
- Castor Material:Mild Steel
Product Description
The MFTP B 125 50 PUCB is a medium-duty plate-mounted castor built around a 125 x 50 mm polyurethane on cast iron core wheel with a 95 Shore A hardness, carried on a mild steel body. It is rated to carry loads of up to 300 kg per wheel, making it well suited to industrial manufacturing; warehousing and logistics; automotive industry. The castor comes with a swivel head with an integrated brake for secure locking, a 116x100 mm mounting plate, 83x71 mm mounting hole spacing and a 20x12.5 mm bolt hole size. Overall height is 165 mm. In service, it performs well on carpet, concrete, epoxy, operates across a temperature range of -10°C to 60°C, and offers quiet, low-noise running. Ideal for industrial manufacturing, warehousing and logistics, automotive industry, construction.
