Mount Type
MFTP B 200 50 PUCB(T)2 — PU (CI Core2) Wheel with MS Fabricated Castor
- Wheel Material:Polyurethane on Cast Iron Core
- Mount Type:Plate mount
- Wheel Diameter:200.0 mm
- Wheel Width:48.0 mm
- Total Height:238.0 mm
- Top Plate Size:116x100mm
- Hole Pitch:83x71mm
- Hole Size:20x12.5mm
- Load Capacity:380Kgs
- Castor Material:Mild Steel
Product Description

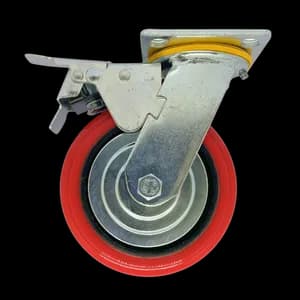

Built for demanding, high-load work, the MFTP B 200 50 PUCB(T)2 pairs a 200 x 48 mm polyurethane on cast iron core wheel with a 95 Shore A hardness with a mild steel housing in a plate-mounted format. Each wheel supports up to 380 kg, so it is a strong fit for industrial manufacturing; warehousing and logistics; automotive industry. The castor comes with a swivel head with an integrated brake for secure locking, a 116x100 mm mounting plate, 83x71 mm mounting hole spacing and a 20x12.5 mm bolt hole size. Overall height is 238 mm. In service, it performs well on carpet, concrete, epoxy, operates across a temperature range of -10°C to 60°C, and offers quiet, low-noise running. Ideal for industrial manufacturing, warehousing and logistics, automotive industry, construction.
