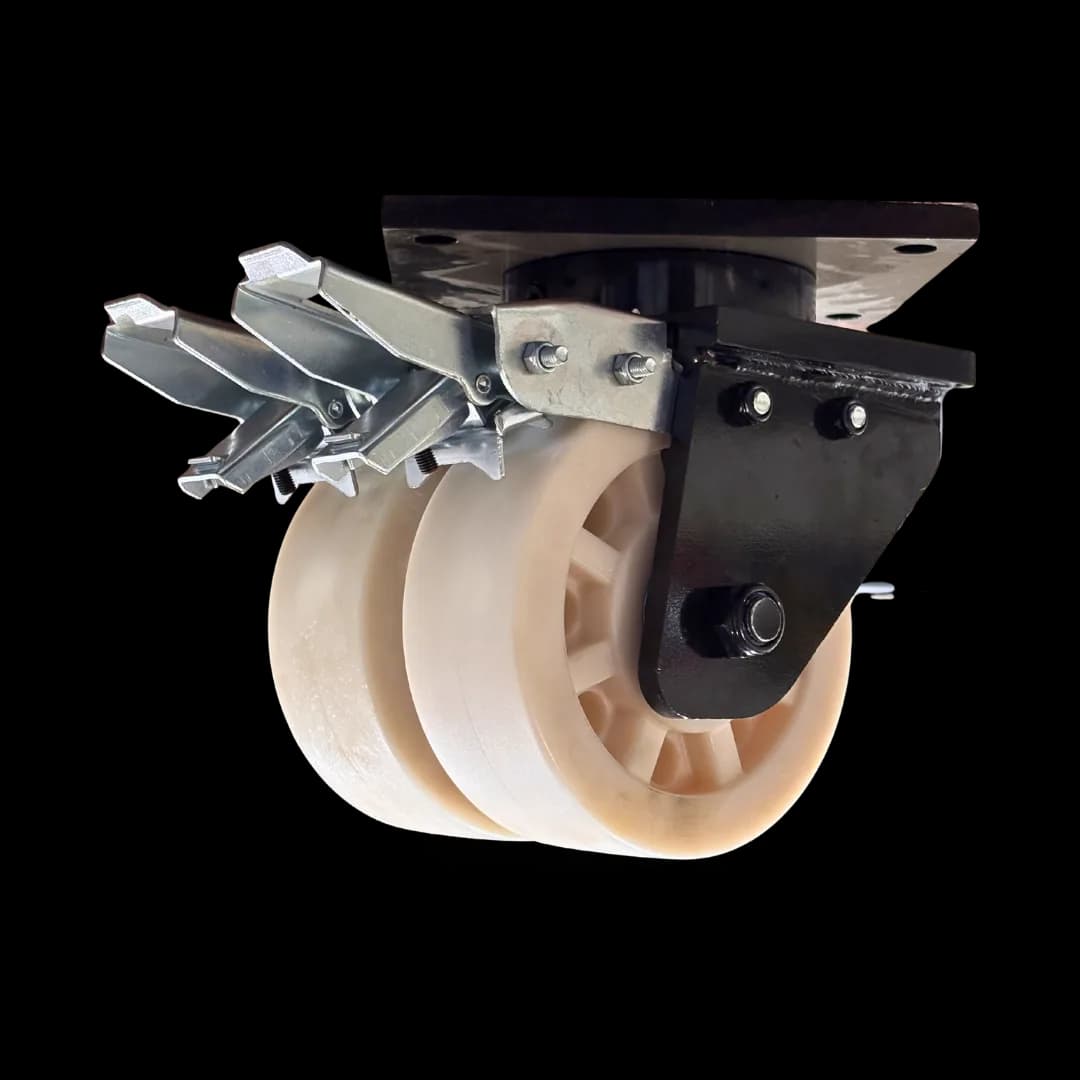

HD B 200 75X2 CNYB — Cast Nylon Wheel with Extra Heavy Duty Castor

Wheel Material:Cast Nylon
Mount Type:Plate mount
Wheel Diameter:200.0 mm
Wheel Width:76.0 mm
Total Height:280.0 mm
Top Plate Size:255x200mm
Hole Pitch:210x160mm
Hole Size:18.5mm
Load Capacity:5000Kgs
Castor Material:Forged Steel

Product Description

The HD B 200 75X2 CNYB combines a 200 x 76 mm cast nylon wheel with a 75 Shore D hardness and a rugged forged steel frame into a dependable heavy-duty plate-mounted castor. It is rated to carry loads of up to 5000 kg per wheel, making it well suited to industrial; ultra heavy-duty applications; extreme load handling. The castor comes with a swivel head with an integrated brake for secure locking, a 255x200 mm mounting plate, 210x160 mm mounting hole spacing and a 18.5 mm bolt hole size. Overall height is 280 mm. In service, it performs well on concrete, asphalt, smooth steel, operates across a temperature range of -15°C to 100°C, and offers quiet, low-noise running. Ideal for industrial, ultra heavy-duty applications, extreme load handling, continuous high-stress operations.
