Mount Type

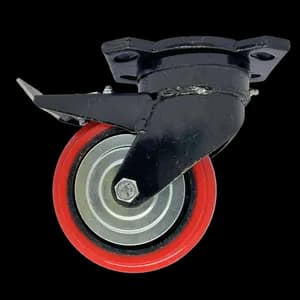

HDF B 100 50 PUCB(T)2 — Tapered PU (CI Core) Wheel with Heavy Duty Forged Steel Castor
- Wheel Material:Polyurethane on Cast Iron Core
- Mount Type:Plate mount
- Wheel Diameter:100.0 mm
- Wheel Width:47.0 mm
- Total Height:156.0 mm
- Top Plate Size:150x110mm
- Hole Pitch:115x63mm
- Hole Size:26x13mm
- Load Capacity:250Kgs
- Castor Material:Forged Steel
Product Description
Designed for smooth, reliable movement, the HDF B 100 50 PUCB(T)2 features a 100 x 47 mm polyurethane on cast iron core wheel with a 95 Shore A hardness mounted in a forged steel construction. Each wheel supports up to 250 kg, so it is a strong fit for industrial manufacturing; warehousing and logistics; automotive industry. The castor comes with a swivel head with an integrated brake for secure locking, a 150x110 mm mounting plate, 115x63 mm mounting hole spacing and a 26x13 mm bolt hole size. Overall height is 156 mm. In service, it performs well on carpet, concrete, epoxy, operates across a temperature range of -10°C to 60°C, and offers quiet, low-noise running. Ideal for industrial manufacturing, warehousing and logistics, automotive industry, construction.
