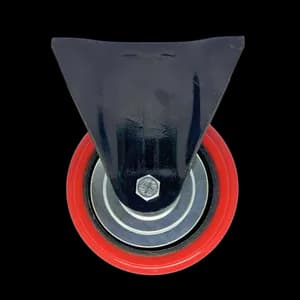

HDF F 100 50 PUCB(T)2 — Tapered PU (CI Core) Wheel with Heavy Duty Forged Steel Castor
- Wheel Material:Polyurethane on Cast Iron Core
- Mount Type:Plate mount
- Wheel Diameter:100.0 mm
- Wheel Width:47.0 mm
- Total Height:158.0 mm
- Top Plate Size:144x110mm
- Hole Pitch:120x60mm
- Hole Size:13mm
- Load Capacity:250Kgs
- Castor Material:Forged Steel
Product Description
Designed for smooth, reliable movement, the HDF F 100 50 PUCB(T)2 features a 100 x 47 mm polyurethane on cast iron core wheel with a 95 Shore A hardness mounted in a forged steel construction. It is rated to carry loads of up to 250 kg per wheel, making it well suited to industrial manufacturing; warehousing and logistics; automotive industry. The castor comes with a fixed (non-swivelling) fork for straight-line travel, a 144x110 mm mounting plate, 120x60 mm mounting hole spacing and a 13 mm bolt hole size. Overall height is 158 mm. In service, it performs well on carpet, concrete, epoxy, operates across a temperature range of -10°C to 60°C, and offers quiet, low-noise running. Ideal for industrial manufacturing, warehousing and logistics, automotive industry, construction.
